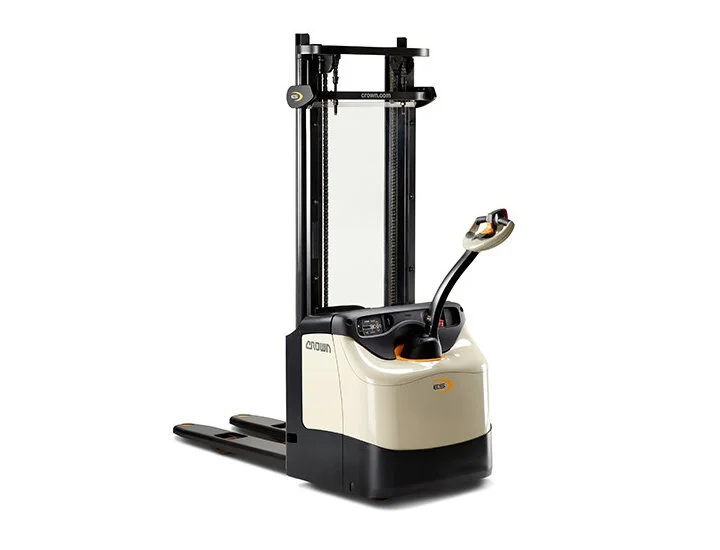

ES 4000 FORK OVER WALKIE STACKER

PRECISION AND STRENGTH IN SMALL SPACES

The Crown ES Series walkie stacker delivers powerful performance, responsive control, excellent maneuverability and visibility so operators can work safely and productively in small spaces.

Robust and Powerful

With the ES Series walkie stacker, strength is apparent on the inside and out. Its components and structures are engineered for maximum power and endurance.
The drive unit features a Crown-built AC traction motor and heavy-duty cast iron gearbox to handle the heaviest loads. A formed steel tiller arm with die-cast aluminum control handle ensures long life in the toughest environments.
The rugged power unit features a thick steel skirt and removable steel covers. The mast features nested I-beam construction and thick steel cross bars.

Superior Handling and Performance

Responsive traction control and the narrow chassis simplify maneuvering in confined spaces, even with heavy loads. Precise proportional lift and lower functions optimize load handling at heights up to 132 inches. The brake-override function allows operation in the creep speed mode with the handle position nearly vertical for precise maneuvering. The innovative X10 handle includes a rabbit/turtle switch for two levels of programmable travel performance so operators can quickly select the setting that matches their experience level or specific task.

A Clearly Visible Advantage

The compact ES Series’ superior all-around visibility gives operators greater confidence when working in confined spaces. This significantly improves throughput and promotes safe operation during maneuvering. A contoured, low profile power unit, wide-open mast window and fork carriage gives operators a clear view of the fork tips and outriggers. Fork tip indicators provide a quick visual reference to assist operators with fork positioning. A center-mounted tiller handle positions the operator at a safe working distance from the power unit and provides maximum visibility to either side of the stacker.

Exceptional Reliability and Lasting Value

Engineered for durability and power, ES Series stackers prove their value with exceptionally long life. A virtually maintenance free 3-phase AC traction control motor provides strong acceleration and control at any speed. The e-GEN braking system uses the AC motor to stop the truck, eliminating adjustments and wear points on mechanical brake systems for virtually maintenance-free operation.
